Description

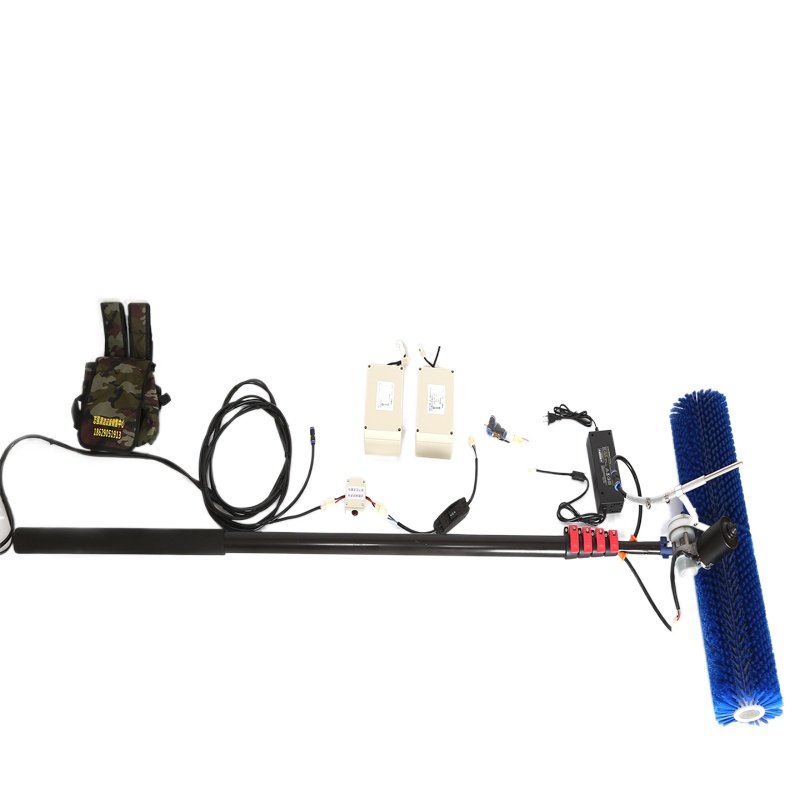

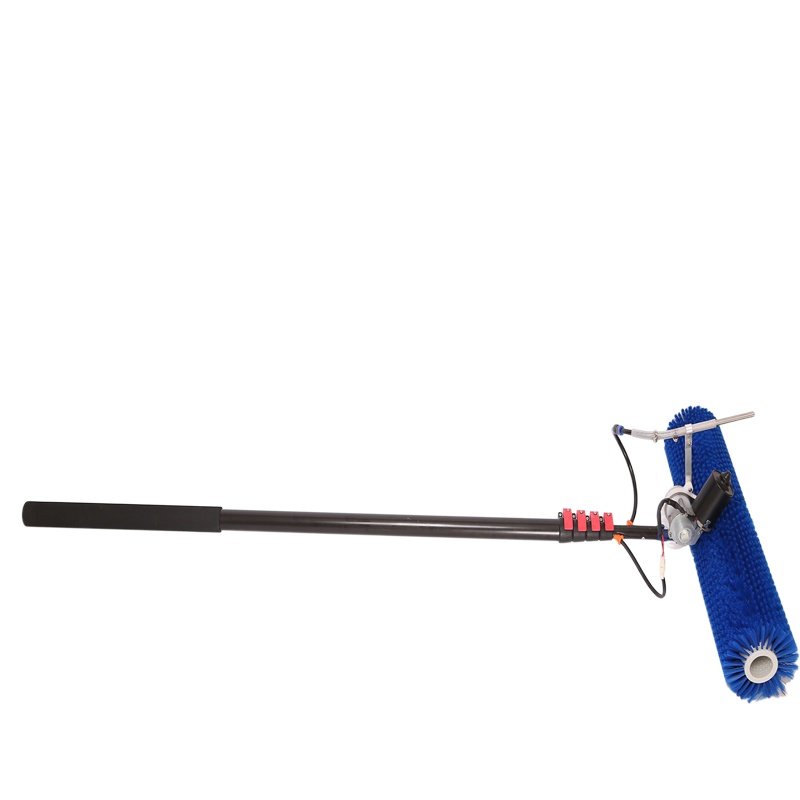

This manual cleaning tool is designed for washing photovoltaic panels. It features a telescopic pole that extends to 7.5 meters and a cleaning head equipped with two rotating nylon brushes. The unit is powered by a 24V lithium battery housed in a portable backpack, allowing for operation without a mains power source. It includes an integrated water pipe for wet cleaning applications.

Technical Specifications

• Pole Length: 7.5 Meters

• Power Supply: 24V Lithium Battery

• Battery Capacity: 24Ah

• Battery Duration Time: 4 hours

• Brush Heads: Double-head rotating design

• Brush Material: Nylon

• Motor Type: 24V DC Motor

• Power: 200W

• Rotating Speed: 320 RPM

• Water Pipe: 8mm – 12mm

• Pole Material: Aluminum Alloy

• Operating Type: Manual telescopic

Key Features

• Lithium Battery Power: Uses a 24V battery and backpack for mobile operation on site.

• Telescopic Pole: Adjustable 7.5m pole for reaching various array heights and depths.

• Double-Head Rotation: Two rotating brushes for mechanical surface agitation.

• Water-Fed System: Features an internal water pipe and connection for simultaneous rinsing and scrubbing.

• Wet & Dry Cleaning: Designed for use with water for washing or dry use for dust removal.
