Description

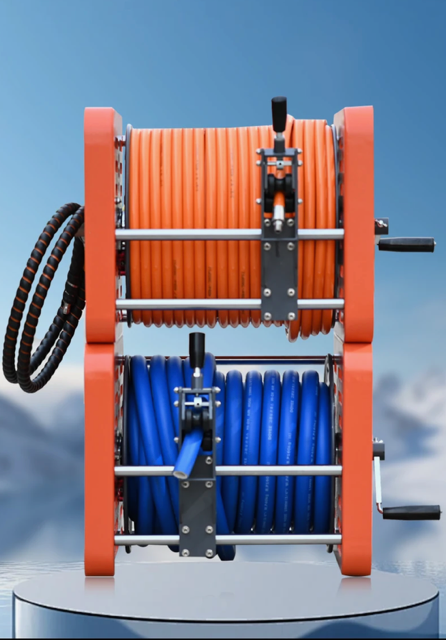

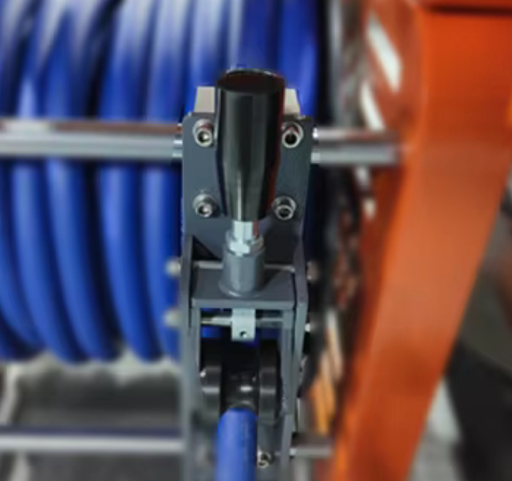

This double-stacked reel system is designed for professional drain cleaning and high-pressure water delivery. The vertical configuration allows for two independent hose lines to be managed within a single, narrow footprint. Each reel is operated by a manual hand-crank and includes an integrated level-wind guidance system to prevent hose tangling and wear.

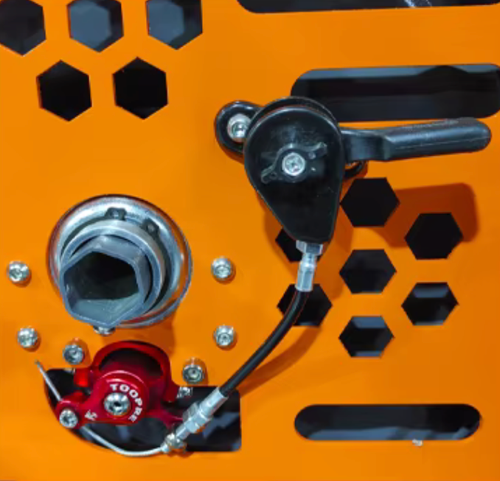

The frame is constructed from industrial powder-coated steel with independent locking levers to secure the reels during transport. It comes equipped with 3/8″ quick-connect fittings and a 1.5m inlet lead hose, making it compatible with most high-pressure pump systems and jetting machines.

Technical Specifications

• Pressure Range: 100 – 350 bar (1,450 – 5,075 PSI)
• Max Flow Rate: 80 Liters per minute
• Hose Connection: 3/8″ Quick Connect

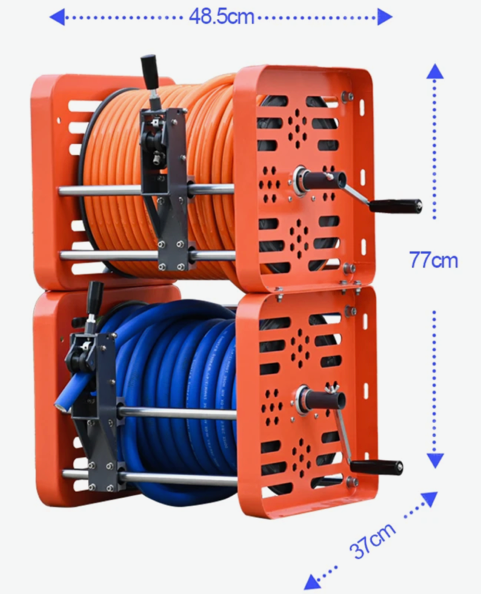

• Dimensions: 77cm (H) x 48.5cm (L) x 37cm (W)
• Net Weight: 31kg (Frame only)
• Inlet Hose: 1.5m side hose included
• Material: Reinforced powder-coated steel
• Operation: Manual crank with level-wind guide bars
